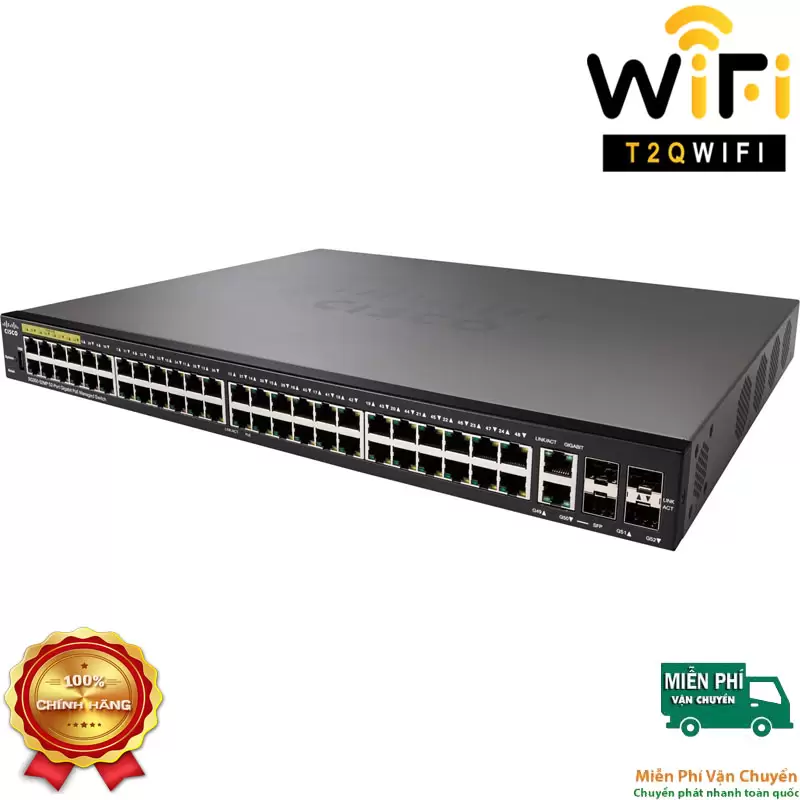

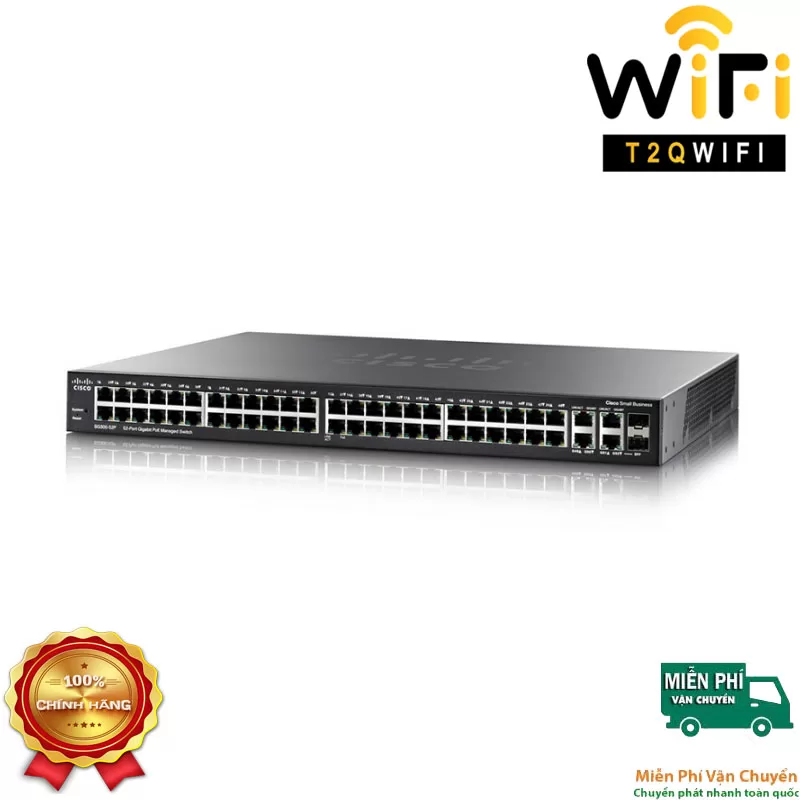

    CISCO SG350-52MP-K9-EU, 48-port PoE+ Gigabit with 740W power budget+2 Gigabit copper/SFP combo+2 SFP ports Managed Switch
    https://t2qwifi.com/wp-content/uploads/2020/09/t2qwifi_sg350-52mp-k9-1.jpg

    CISCO SG350-52MP-K9-EU, 48-port PoE+ Gigabit with 740W power budget+2 Gigabit copper/SFP combo+2 SFP ports Managed Switch

    T2QWIFI chuyên phân phối thiết bị chuyển mạch CISCO SG350-52MP-K9-EU, 48-port PoE+ Gigabit with 740W power budget+2 Gigabit copper/SFP combo+2 SFP ports Managed Switch. Quý khách hàng mua hàng tại T2QWIFI được bảo hành 01 năm, giao hàng miễn phí và hỗ trợ Kỹ thuật 24/7.

    Khi mua hàng tại T2QWIFI, Quý khách hàng được hỗ trợ kỹ thuật 24/7 trong thời gian sử dụng thiết bị.

    Chính sách bảo hành 01 năm cho thiết bị

    Và ngoài ra, chúng tôi hỗ trợ giao hàng miễn phí trong nội thành thành phố Hồ Chí Minh.



    Liên hệ


    • Thông tin chi tiết
    • Thông số kỹ thuật

    Bạn cần trang bị cho mình một thiết bị mạng để kết nối hệ thống mạng của bạn? Thì thiết bị mạng CISCO SG350-52MP-K9-EU sẽ đáp ứng được nhu cầu sử dụng của bạn. Bạn hãy cùng chúng tôi T2QWIFI tìm hiểu chi tiết hiệu năng sử dụng của dòng này nhé.

    1. Thiết bị mạng Switch Cisco SG350-52MP-K9-EU có thông số kỹ thuật như sau

    – 48 10/100/1000 ports (48 Port PoE+, công suất tối đa mỗi port 15.4, 30W, 60W. Công suất tối đa switch 740W); 2 Gigabit copper/SFP combo + 2 SFP ports.
    – Performance: Switching capacity 104.0 Gbps, nonblocking, Forwarding rate 77.38 mpps wire-speed performance.
    – Layer 2: Port grouping up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation, Number of VLANs 256 active VLANs (4096 range), Head-of-line (HOL) blocking HOL blocking prevention.
    – Layer 3: IPv4 routing Wirespeed routing of IPv4 packets, Up to 512 static routes and up to 128 IP interfaces, Classless Inter-Domain Routing (CIDR) support for CIDR.
    – Tham khảo datasheet về các tính năng của Switch : Performance, Layer 2 Switching, Layer 3, Security, Quality of Service, Standards, IPV6, Management, …

    2. Vì sao bạn nên mua thiết bị chuyển mạch Cisco SG350-52MP-K9-EU tại T2QWIFI?

    Khi mua sản phẩm Switch Cisco SG350-52MP-K9-EU hay cũng như các dòng sản phẩm CISCO tại T2QWIFI bạn sẽ được hưởng chính sách ưu đãi như sau:

    • Chúng tôi T2QWIFI là đơn vị phân phối chính hãng của sản phẩm Cisco tại Việt Nam, cho nên chúng tôi cam kết cung cấp hàng chính hãng.
    • Mua hàng tại www.t2qwifi.com bạn sẽ được tư vấn, hỗ trợ lên dự toán về sản phẩm hay cũng như ngân sách tối ưu cho nhu cầu của bạn.
    • Hỗ trợ kỹ thuật 24/7 trong thời gian sử dụng thiết bị.
    • Chính sách bảo hành 01 năm.
    • Và ngoài ra, chúng tôi hỗ trợ giao hàng miễn phí trong nội thành thành phố Hồ Chí Minh.

    3. Địa chỉ cung cấp thiết bị chuyển mạch Cisco SG350-52MP-K9-EU ở địa chỉ nào?

    Với hơn 10 năm hoạt động, chúng tôi hiểu rõ sự cấp thiết của khách hàng khi mong muốn có một giải pháp mạng Không dây phù hợp nhất. Bạn có thể liên hệ với T2QWIFI để mua thiết bị chuyển mạch Cisco SG350-52MP-K9-EU với giá rẻ theo địa chỉ sau:

    Hãy gọi ngay cho chúng tôi để được hỗ trợ tốt nhất.

    • Địa chỉ: 40A Vườn Lài, Phường An Phú Đông, Quận 12, Thành Phố Hồ Chí Minh
    • Email: wifi.t2q@gmail.com
    • Hotline: 0903.797.383

    THÔNG SỐ KỸ THUẬT CỦA CISCO SG350-52MP-K9-EU

    Model SG350-52MP-K9-EU
    Performance
    Switching capacity and forwarding rate Capacity in Millions of Packets per Second (mpps) (64-byte packets): 77.38
    All switches are wire speed and nonblocking Switching Capacity in Gigabits per Second (Gbps): 104
    Total System Ports 52 Gigabit Ethernet
    RJ-45 Ports 48 Gigabit Ethernet
    Up link port 2 SFP slots, 2 Gigabit Ethernet combo
    Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K
    MAC table 64K addresses
    Layer 2 Switching
    Spanning Tree Protocol Standard 802.1d Spanning Tree support
    Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
    8 instances are supported
    Multiple Spanning Tree instances using 802.1s (MSTP)
    Port grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 8 groups,  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
    VLAN Support for up to 4096 VLANs simultaneously
    Port-based and 802.1Q tag-based VLANs
    MAC-based VLAN
    Management VLAN
    Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
    Guest VLAN
    Unauthenticated VLAN
    Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
    CPE VLAN
    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
    Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices
    Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs (also known as MVR)
    Q-in-Q VLAN VLANs transparently cross a service provider network while isolating traffic among customers
    Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain
    Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and blackholing of traffic in switched networks
    Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported)
    IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-Of-Line (HOL) blocking HOL blocking prevention
    Loopback Detection Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3
    IPv4 routing Wirespeed routing of IPv4 packets
    Up to 1K static routes and up to 256 IP interfaces
    IPv6 routing Wirespeed routing of IPv6 packets
    Classless Interdomain Routing (CIDR) Support for CIDR
    Layer 3 Interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    DHCP relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets
    DHCP Server Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
    Support for DHCP options
    Security
    Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported
    Secure Sockets Layer (SSL) SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
    IEEE 802.1X (Authenticator role) 802.1X: RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions
    Supports time-based 802.1X
    Dynamic VLAN assignment
    Web-based authentication Web based authentication provides network admission control through web browser to any host devices and operating systems
    STP Bridge Protocol Data Unit (BPDU) Guard A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port
    STP Root Guard This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes
    DHCP snooping Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP Servers
    IP Source Guard (IPSG) When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP Address Spoofing
    Dynamic ARP Inspection (DAI) The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks
    IP/MAC/Port Binding (IPMB) The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DOS attacks in the network, thereby increasing network availability
    Secure Core Technology (SCT) Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user
    Layer 2 isolation Private VLAN Edge (PVE) with community VLAN PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
    Port security The ability to lock source MAC addresses to ports and limits the number of learned MAC addresses
    RADIUS/TACACS+ Supports RADIUS and TACACS authentication. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    RADIUS accounting The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session
    DoS prevention Denial-Of-Service (DOS) attack prevention
    ACLs Support for up to 512 rules
    Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag, time-based ACLs supported
    Quality of Service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR)Queue assignment based on DSCP and class of service (802.1p/CoS)
    Class of service Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and remarking ACLs, trusted QoS
    Rate limiting Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
    Power over Ethernet (PoE)
    PoE The following switches support 802.3at PoE+, 802.3af PoE, and Cisco prestandard (legacy) PoE on any of the RJ45 network ports. 60W PoE is also supported on selected RJ-45 network ports
    Maximum power of 60W is delivered to any of the 60W PoE ports, and maximum power of 30W is delivered to any of the other RJ45 network ports, until the PoE budget for the switch is reached
    The total power available for PoE per switch is as follows
    Power Dedicated to PoE 740 W
    Number of Ports That Support PoE 48
    Environmental
    Dimensions 440 x 44 x 350 mm
    Weight 3.83 kg
