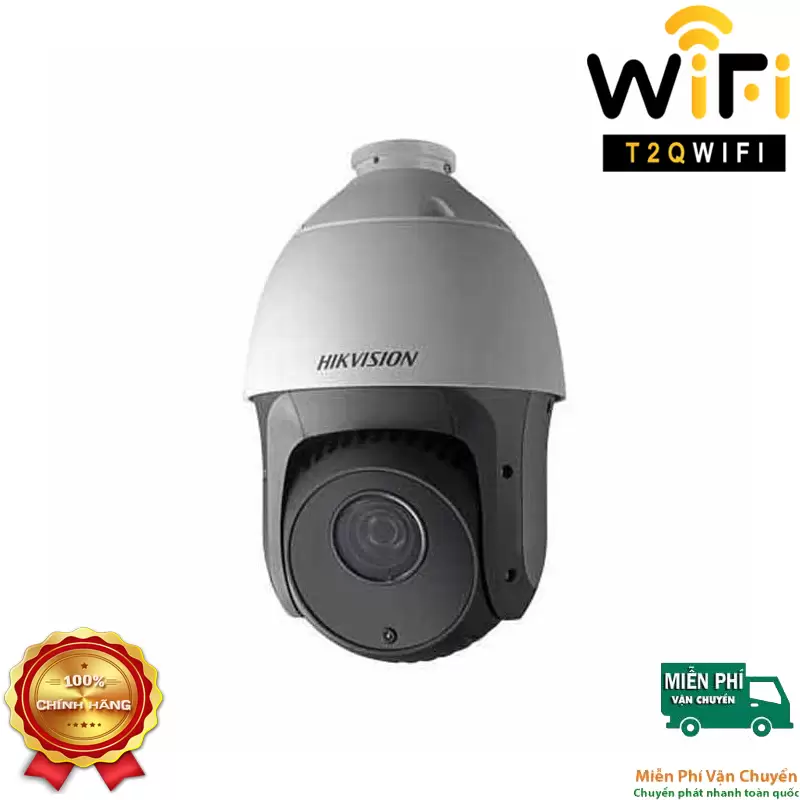

DS-2AE4225TI-D |
Mô tả |
Camera |
|
Image Sensor |
1/3" progressive scan CMOS |
Cảm biến sử dụng |
Min Illumination |
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON) |
Độ nhạy sáng |
White Balance |
AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
Cân Bằng Trắng |
Shutter Time |
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s |
Tốc Độ màn trập điện tử |
Day & Night |
IR cut filter |
Bộ lọc Hồng ngoại |
Digital Zoom |
16× |
Zoom số ( Theo độ phân giải của hình ảnh ) |
Privacy Mask |
8 programmable privacy masks |
Vùng cần che khuất |
Focus Mode |
Auto/Semi-automatic/Manual |
Lấy nét |
WDR |
DWDR |
Chống ngược sáng |
BLC |
Yes |
Hỗ trợ |
EIS |
Yes |
Hỗ trợ |
Reginal Focus |
Yes |
Hỗ trợ |
AGC |
Auto/Manual |
Hỗ trợ |
DNR |
3D DNR |
Hỗ trợ |
Lens |
|
Focal Length |
4 mm to 92 mm, 25× Optical |
Zoom quang |
Zoom Speed |
Approx. 3 s (optical lens, wide-tele) |
Tốc độ Zoom |
Field of View |
57.6° to 2.5°(wide-tele) |
Góc quan sát |
Working Distance |
10 mm to 1000 mm (wide-tele) |
|
Aperture Range |
F1.4 to F3.5 |
Khẩu độ |
PTZ |
|
Pan Range |
360° endless |
Quay quét không giới hạn |
Pan Speed |
Configurable, from 0.1°/s to 400°/s,
Preset speed: 400°/s |
Tốc độ quét ngang , có thể tùy chỉnh |
Movement Range (Tilt) |
From -15° to 90° |
Phạm vị quét dọc |
Tilt Speed |
Configurable, from 0.1°/s to 120°/s,
Preset speed: 200°/s |
Tốc độ quét dọc , có thể tùy chỉnh |
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
Tốc độ quay |
Presets |
256 |
Sô điểm đặt trước |
Power-off Memory |
Support |
Tự quay về vị trí trước khi bị mất điện |
Patrol |
10 patrols, up to 32 presets per patrol |
Mẫu tuần tra |
Pattern |
5 patterns with the total recording time no less than 10 minutes |
Mẫu quay quét |
Park Action |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
Chế độ hoạt động |
PTZ Position Display |
ON/OFF |
|
Preset Freezing |
Yes |
Đứng lại tại 1 điểm |
Scheduled Task |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
|
IR |
Hồng ngoại |
IR Distance |
100 m |
Tầm hoạt động |
Smart IR |
Automatically adjusted depending on the zoom ratio |
Tự động theo tỉ lệ thu phóng |
Input/Output |
Video Output |
HD video output, (NTSC or PAL composite, BNC) |
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
UTC function |
UTC protocol (or HIKVISION-C protocol in previous DVR) |
|
General |
|
Power |
12VDC 20W |
Nguồn sử dụng |
Working Temperature |
-30°C to 65°C |
Hoạt động trong Nhiệt độ |
Working Humidity |
≤ 90% |
Hoạt động trong với độ ẩm |
Protection Level |
IP66 Standard,TVS 4000V |
Đạt chuẩn bảo vệ |
Mounting |
Various mounting modes optional |
Chân đế |
Khối lượng |
2Kg |
|
Kích thước |
Ø 164.5 mm × 295 mm |
