Model |

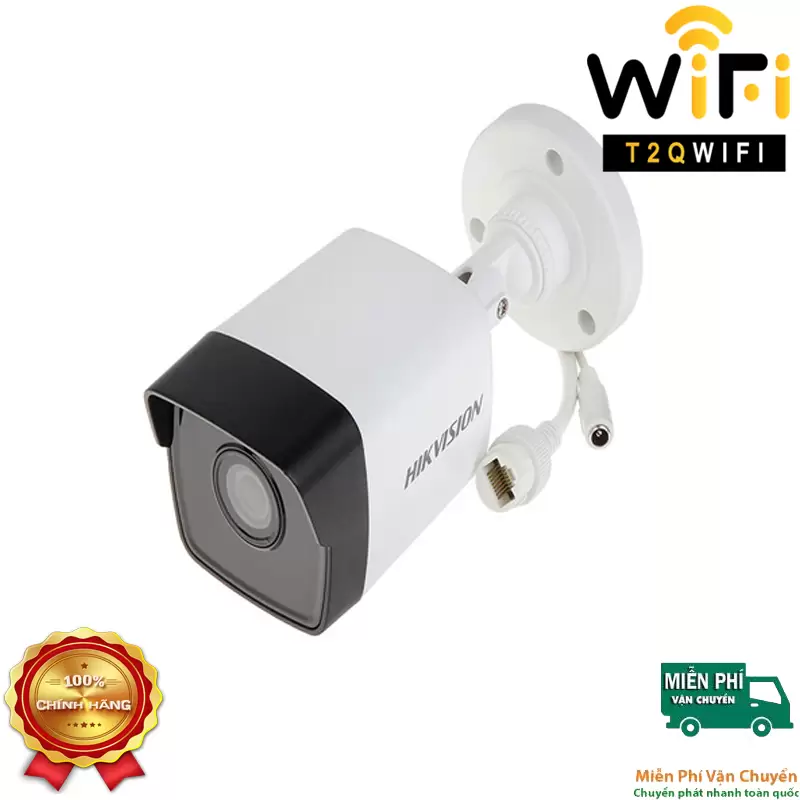

DS-2CD1023G0-IU |
Camera |
Image Sensor |
1/2.8 inch Progressive Scan CMOS |
Min. Illumination |
Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Day & Night |
ICR Cut |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Wide Dynamic Range |
Digital WDR |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens |
Lens Type & FOV |
Fixed lens, 2.8/4 mm |
Aperture |
F2.0 |
FOV |
2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
Lens Mount |
M12 |
Illuminator |
IR Range |
Up to 30 m |
Wavelength |
850 nm |
Video |
Max. Resolution |
1920 × 1080 |
Video Bit Rate |
32 Kbps to 8 Mbps |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Smart Feature-Set |
Basic Event |
Motion detection, video tampering alarm, exception (illegal login) |
Linkage Method |
Upload to FTP, notify surveillance center, send email, trigger capture |
Region Of Interest |
1 fixed region for main stream and sub-stream |
Network |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
User/Host |
Up to 32 users, 3 levels: Administrator, Operator, and User |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
Client |
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
Simultaneous Live View |
Up to 6 channels |
Image |
Image Enhancement |
BLC, 3D DNR |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
Day/Night Switch |
Day/Night/Auto/Schedule |
Interface |
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Audio |
1 audio input (built-in microphone), mono sound |
Interface Style |
Pigtail style interface |
General |
General Function |
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter |
Reset |
Reset via web browser and client software |
Power Supply |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
Power Consumption |
12 VDC, 0.3 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.0 W |
Operating Conditions |
-30°C ~ 60°C (-22°F to 140°F), humidity 95% or less (non-condensing) |
Weather Proof |
IP66 |
Material |
Front cover: metal, back cover : plastic |
Dimensions |
Camera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7")
With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6") |
Weight |
Camera: Approx. 270 g (0.6 lb.)
With package: Approx. 470 g (1 lb.) |
