Model |

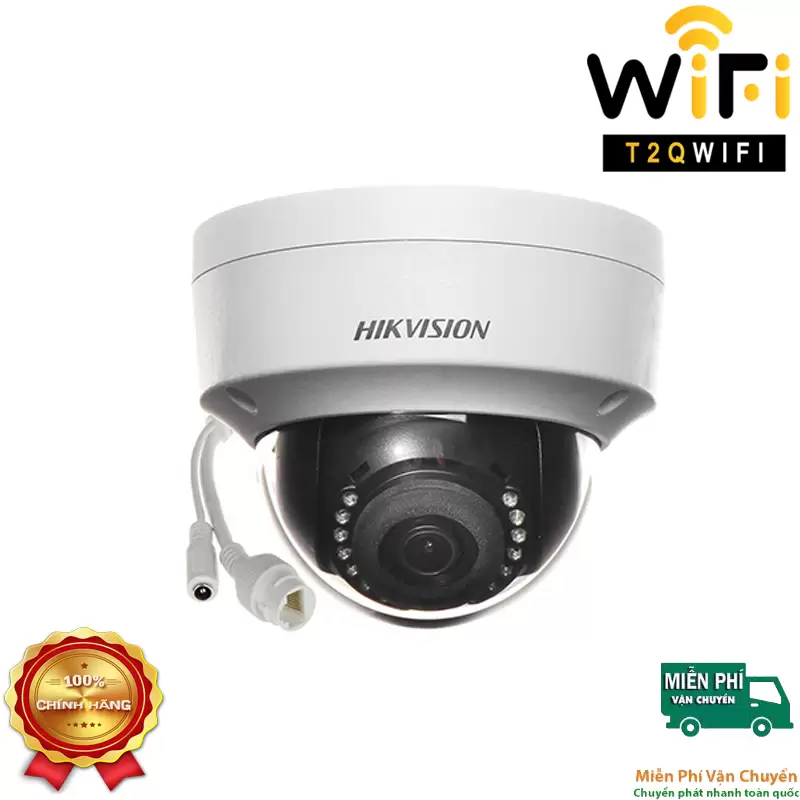

DS-2CD1123G0E-I(L) |
Image Sensor |
1/2.8 inch Progressive Scan CMOS
|
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
|
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Day &Night |
IR cut filter |
Digital Noise Reduction |
3D DNR |
WDR |
DWDR |
Angle Adjustment (Bracket) |
Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
|
Lens |
|
Focal length |
2.8/4 mm |
Aperture |
F2.0 |
Focus |
Fixed |
Lens Mount |
M12 |
Compression Standard |
|
Video Compression |
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG |
Video Bit Rate |
32Kbps ~ 8Mbps |
Image |
|
Max. Resolution |
1920 × 1080 |
Image Enhancement |
BLC, 3D DNR |
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
|
Day/Night Switch |
Auto, scheduled, day, night |
Network |
|
Alarm Trigger |
Motion detection, video tampering alarm, illegal login
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
|
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
|
API |
ONVIF (PROFILE S), ISAPI |
Interface |
|
Communication |
1 RJ45 10M/ 100M Ethernet interface
|
General |
|
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
|
Power Consumption |
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W |
IR Range |
up to 30m |
Weather Proof |
IP67, IK10 |
Dimensions |
Ø 111 mm × 82.4 mm |
Weight |
400g |
