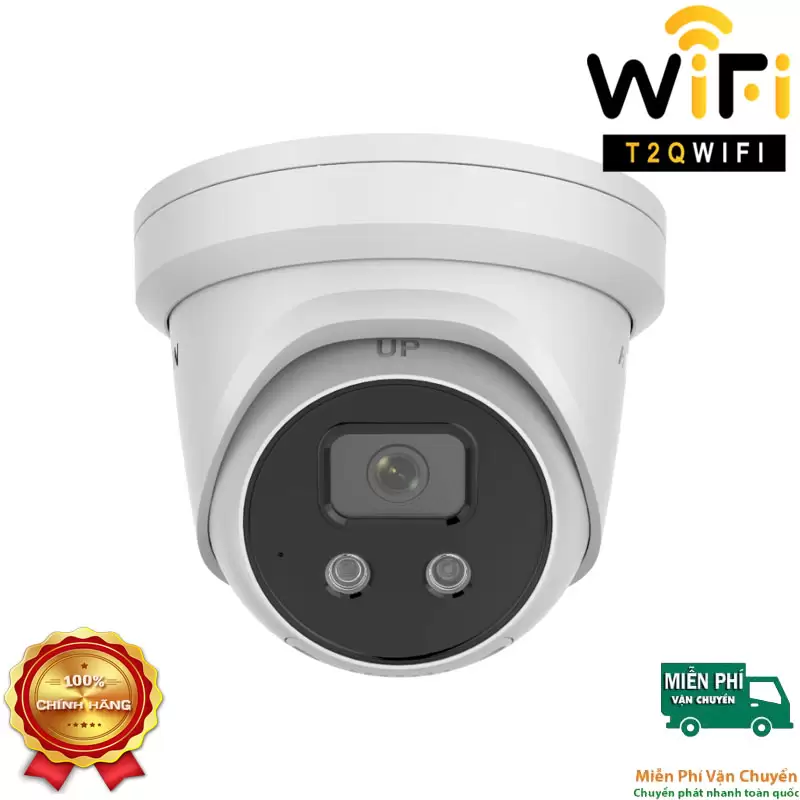

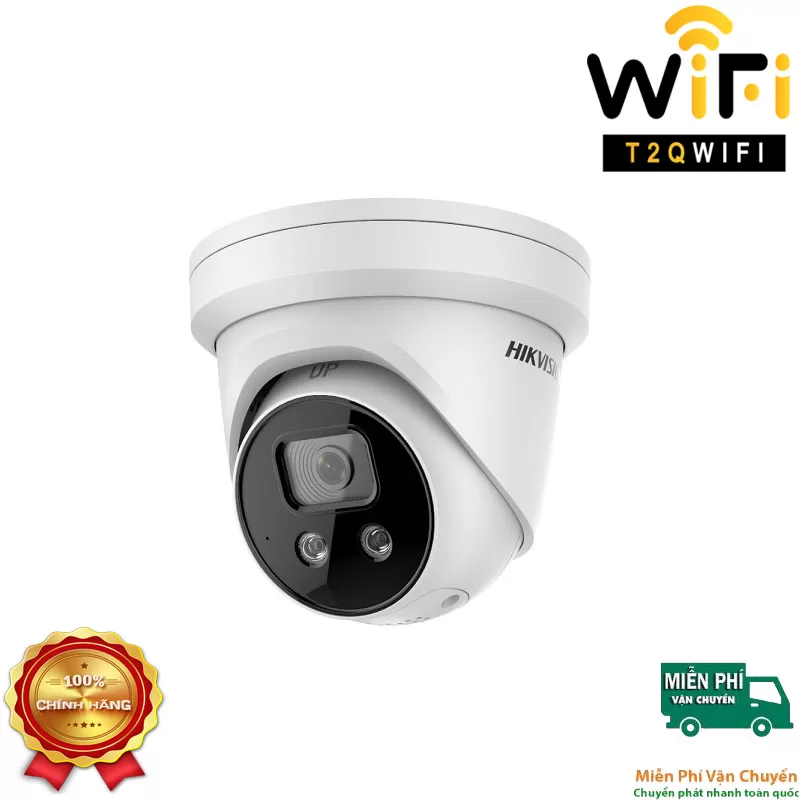

Model |
DS-2CD2326G2-ISU/SL |
Image Sensor |
1/2.8 inch Progressive Scan CMOS |
Min. Illumination |
Color: 0.002 Lux @ (F1.4, AGC ON) |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Day & Night |
IR Cut Filter |
WDR |
120 dB |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
IR Range |
Up to 30 m |
Smart Supplement Light |
Yes |
Visual Alarm |
Yes |
Lens |
Lens Type & FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65° |
Aperture |
F1.4 |
Lens Mount |
M12 |
Video |
Max. Resolution |
1920 × 1080 |
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 720) |
Video Bit Rate |
32 kbps to 8 Mbps |
Audio |
Environment Noise Filtering |
Yes |
Audio Compression |
G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3 |
Network |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Simultaneous Live View |
Up to 6 channels |
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
User/Host |
Up to 32 users: 3 user levels: administrator, operator and user |
Image |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface |
Communication |
1 RJ45 10M/100M self-adaptive Ethernet port |
Audio |
1 built-in speaker, 1 built-in microphone |
Alarm |
1 input, 1 output (max. 12 VDC, 30 mA) |
On-board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Intelligent |
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
Face Capture |
Yes |
Premier Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
General |
General Function |
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
Power Supply |
12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
Material |
Metal except for trim ring |
Protection |
IP66 |
Dimensions |
Ø138.3 × 124.5 mm |
Weight |
800g |
