| Model |

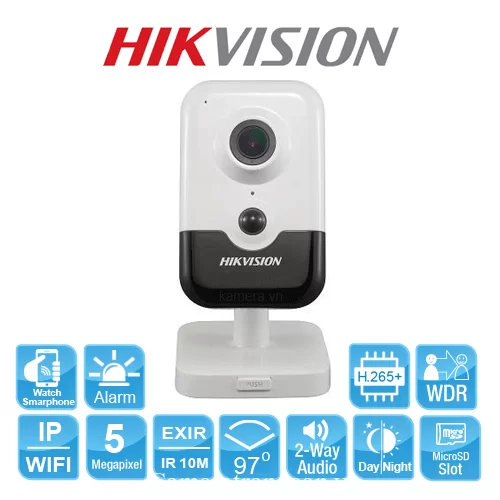

DS-2CD2455FWD-IW |
| Image Sensor |
1/2.8 inch Progressive Scan CMOS |
| Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Day & Night |
IR Cut Filter |
| Digital Noise Reduction |
3D DNR |
| WDR |
120dB |
| 3-Axis Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
| Focal length |
2.8/4/6 mm |
| Aperture |
F2.0 |
| FOV |
Horizontal field of view: 93°
Vertical field of view: 51°
Diagonal field of view: 108° |
| Lens Mount |
M12 |
| IR |
| IR Range |
10 m |
| Wavelength |
850nm |
| PIR |
| Angle |
Horizontal: 90°, Vertical: 80° |
| PIR Range |
10 m |
| Compression Standard |
| Video Compression |
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| H.264 Type |
Main Profile/High Profile |
| H.264+ |
Yes |
| H.265 Type |
Main Profile |
| H.265+ |
Yes |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Audio Compression |
G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Smart Feature-set |
| Behavior Analysis |
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Face Detection |
Yes |
| Region of Interest |
Support 1 fixed region for main stream and sub-stream separately |
| Image |
| Max. Resolution |
2560 × 1920 |
| Main Stream |
50Hz: 20 fps (2560 × 1920, 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Image Enhancement |
BLC/3D DNR |
| Day/Night Switch |
Auto/Schedule |
| Network |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger |
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function |
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View |
Up to 6 channels |
|
Up to 32 users |
| User/Host |
3 levels: Administrator, Operator and User |
| Client |
iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser |
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface |
| Audio |
1 built-in mic, 1 built-in speaker, mono sound |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| SVC |
Support H.264 and H.265 encoding |
| Reset Button |
Yes |
| Wi-Fi |
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency Range |
2.412 GHz to 2.4835 GHz |
| Channel Bandwidth |
20M/40M |
| Protocols |
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Security |
WPA, WPA2 |
| Transfer Rates |
11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range |
50 m |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
16 kHz |
| General |
| Operating Conditions |
-10 °C to +40 °C (14 °F to +104 °F)
Humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 20%, PoE (802.3af, class 3) |
| Power Consumption and Current |
12 VDC, 0.47A, max. 7W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
| Interface Protection |
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material |
Plastic |
| Dimensions |
102.8× 65.2 × 32.6 mm |
| Weight |
Approx. 128 g |
