Model |

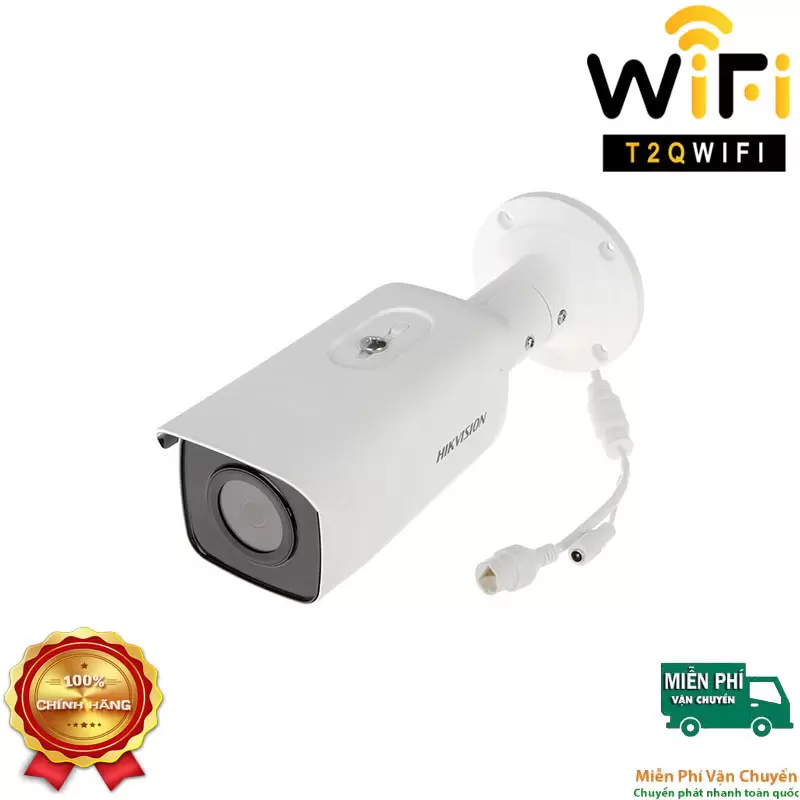

DS-2CD2646G2-IZSU/SL |
Image Sensor |
1/2.7 inch Progressive Scan CMOS |
Min. Illumination |
Color: 0.003 Lux @ (F1.4, AGC ON) |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Day & Night |
IR Cut Filter |
WDR |
120 dB |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
IR Range |
Up to 60 m |
Smart Supplement Light |
Yes |
Visual Alarm |
Yes |
Lens |
Focus |
Auto |
Lens Type & FOV |
2.8 to 12mm, horizontal FOV 107.7° to 30.3°, vertical FOV 56° to 17.1°, diagonal FOV 131° to 34.8° |
Aperture |
F1.4 |
Lens Mount |
Ø14 |
Video |
Max. Resolution |
2592 × 1944 |
Video Compression |
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
Video Bit Rate |
32 Kbps to 8 Mbps |
Scalable Video Coding (SVC) |
Yes |
Region of Interest (ROI) |
1 fixed region for each stream |
Audio |
Environment Noise Filtering |
Yes |
Audio Compression |
G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3 |
Network |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Simultaneous Live View |
Up to 6 channels |
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
User/Host |
Up to 32 users: 3 user levels: administrator, operator and user |
Image |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface |
Communication |
1 RJ45 10M/100M self-adaptive Ethernet port |
Audio |
1 built-in speaker, 1 built-in microphone |
Alarm |
1 input, 1 output (max. 12VDC or 24VAC, 1A) |
On-board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Intelligent |
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
Face Capture |
Yes |
Premier Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
General |
General Function |
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
Power Supply |
12 VDC ± 25% |
PoE: 802.3at, Class4 |
Startup and Operating Conditions |
-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
Material |
Aluminum alloy body |
Protection |
IP66, IK10 |
Dimensions |
Ø144 × 342.6 mm |
Weight |
1470g |
