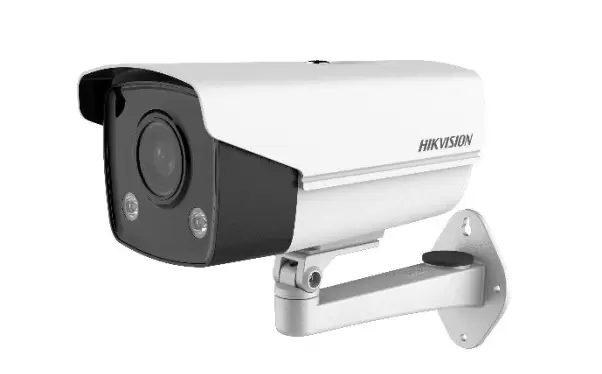

Model |
DS-2CD2T27G3E-L |
Image Sensor |
1/2.8 inch progressive scan CMOS |
Min. Illumination |
0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
Shutter Speed |
1/3 s to 1/100, 000 s |
Slow Shutter |
Yes |
Adjustment Range |
Pan: 0° to 360°, tilt: 0° to 90° |
Day &Night |
IR cut filter |
Digital Noise Reduction |
3D DNR |
WDR |
120 dB |
Focus |
Fixed |
Focal length |
4/6 mm |
Aperture |
F1.0 |
Lens Mount |
M16 |
DNR |
3D DNR |
Compression Standard |
Video Compression |
H.265+, H.264+ |
Video Bit Rate |
32 Kbps to 8 Mbps |
Image |
Max. Resolution |
1920 × 1080 |
Image Enhancement |
BLC/3D DNR/HLC |
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
ROI |
Support 1 fixed region for main stream |
Network |
Network Storage |
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Alarm Trigger |
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
System Compatibility |
ONVIF (PROFILE S, PROFILE G), ISAPI |
Interface |
On-board storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
Communication |
1 RJ45 10M/100M self-adaptive Ethernet port |
Smart Feature-set |
Behavior Analysis |
Line crossing detection, intrusion detection |
General |
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
Power Consumption and Current |
12 VDC, 0.5 A, max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W |
Weather Proof |
IP67 |
Dimensions |
114 × 110 × 220 mm |
Weight |
900g |
