Model |

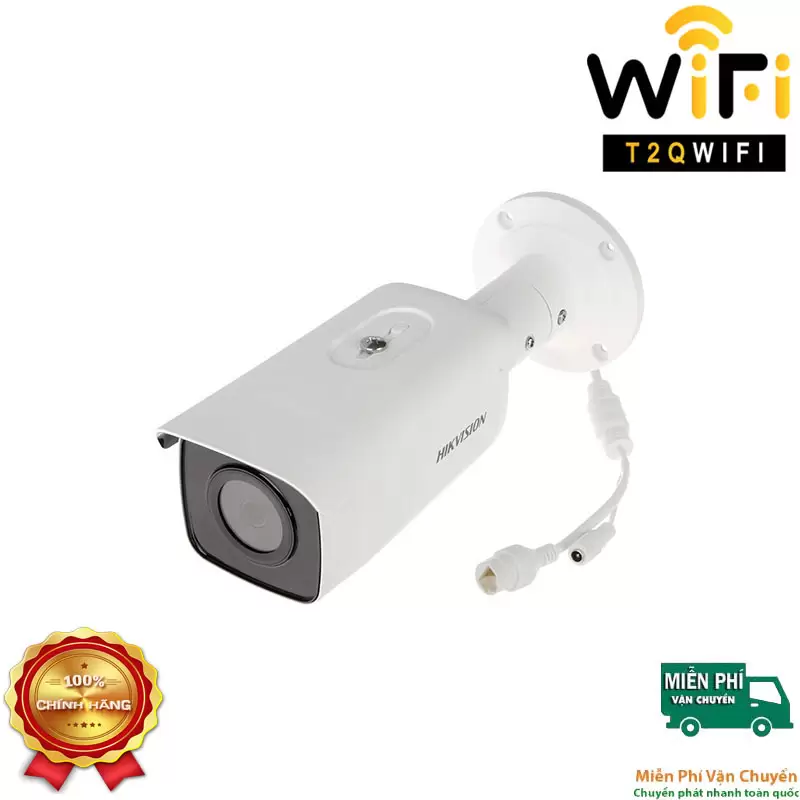

DS-2CD2T46G1-2I |
Image Sensor |
1/2.7 inch Progressive Scan CMOS |
Min. Illumination |
Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Support |
Lens |
2.8/4/6/8/12mm |
Lens Mount |
M12 |
Adjustment Range |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Day & Night |
IR Cut Filter |
Wide Dynamic Range |
120dB |
Digital noise reduction |
3D DNR |
Focus |
Fixed |
Compression Standard |
Video Compression |
H.265/H.264/MJPEG |
Video Bit Rate |
32Kbps ~ 16Mbps |
Image |
Max. Resolution |
2688 × 1520 |
Image Enhancement |
BLC/3D DNR |
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
ROI |
Support 1 fixed region for main stream and sub stream separately |
Network |
Network Storage |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function |
One-key reset, anti-filter |
System Compatibility |
ONVIF (Profile S, Profile G), ISAPI |
Interface |
Communication |
1 RJ45 10M / 100M Ethernet interface |
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Intelligent |
Behavior analysis |
Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification |
General |
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3at, class 4) |
Power Consumption |
12 VDC, 0.9 A, Max: 10.5 W |
PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W |
Weather Proof |
IP67 |
IR Range |
50m |
Dimensions |
Φ105 × 289.5 mm |
Weight |
1100g |
