Model |

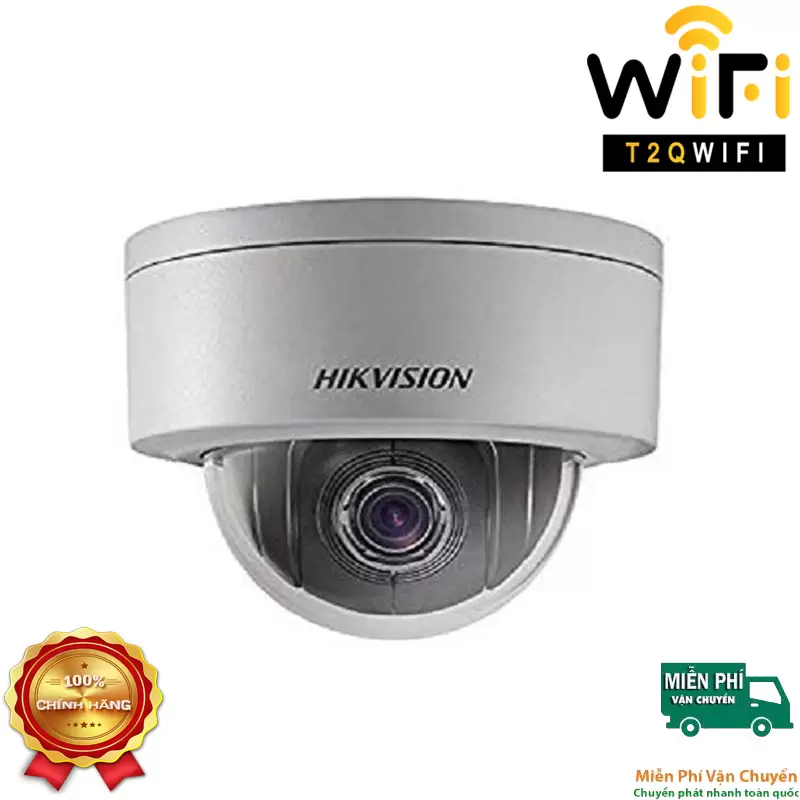

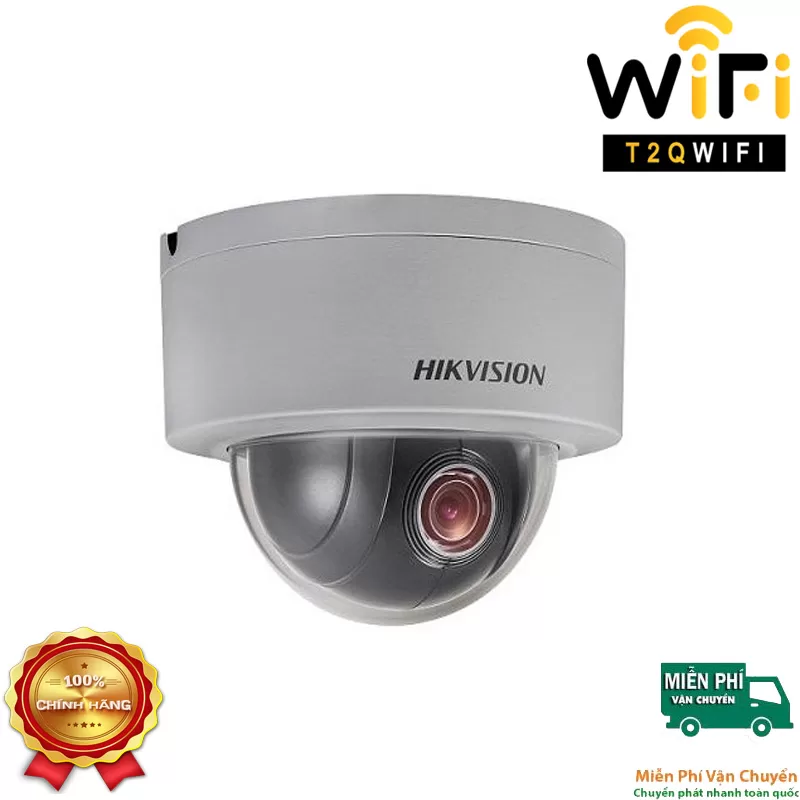

DS-2DE3304W-DE |
Image sensor |
1/2.8 inch progressive scan CMOS |
Effective Pixels |
2048 (H) x 1536 (V) |
Min. Illumination |
F1.6, AGC On: Color: 0.05 lux, B/W: 0.01 lux |
Digital zoom |
16x |
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
AGC |
Auto/Manual |
BLC |
Support |
WDR |
DWDR |
Shutter Time |
1/1~1/10,000s |
Day & Night |
IR |
Privacy Mask |
8 programmable privacy masks |
Lens |
Focus Mode |
Auto/Semiauto/Manual |
Focal Length |
2.8~12mm, 4x |
Aperture Range |
F1.6 ~F2.7 |
Pan/Tilt |
Pan Range |
Pan: 0~350° |
Pan Speed |
Pan Manual Speed: 0.1°~60°/s |
Tilt Range |
Tilt: 0°~90° |
Tilt Speed |
Tilt Manual Speed: 0.1°~50°/s |
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
Presets |
300 |
Power-off Memory |
Support |
Park Action |
Preset |
PTZ Position Display |
ON/OFF |
Input/Output |
Audio Input |
1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
Audio Output |
1 Audio output interface
Line level, impedance: 600Ω |
Alarm input |
1 |
Network |
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
No. of Simultaneous Users |
20 users |
General |
Power Supply |
12V DC & PoE (802.3af, class3) |
Power Consumption |
Max. 8W |
Protection Level |
IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection |
Mounting |
Various mounting modes optional |
Dimensions |
Φ140.7×107.2 mm |
Weight |
950g |
