✅ 4MP Full-Color 24/7 – Hình ảnh sắc nét, màu ban đêm.
✅ Phát hiện thông minh – Nhận diện người, xe, báo động chủ động.
✅ IP67 chống nước, H.265+ tiết kiệm băng thông.
✅ Âm thanh hai chiều, hỗ trợ thẻ nhớ 512GB.
✅ Nguồn 12V DC/PoE, tùy chọn ống kính 2.8/4/6mm.
Camera VIGI C340(2.8mm) là Camera ngoài trời 4MP, giám sát 24/7 với hình ảnh sắc nét, màu ban đêm sống động. Bảo vệ tối đa với phát hiện thông minh, cảnh báo chủ động và khả năng chống nước IP67 bền bỉ. Hãy cùng T2QWIFI tìm hiểu thêm về các tính năng của sản phẩm này qua bài viết dưới đây nhé!

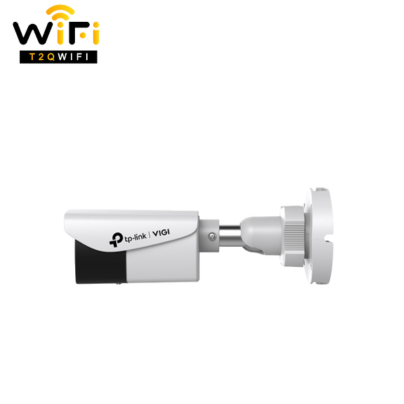

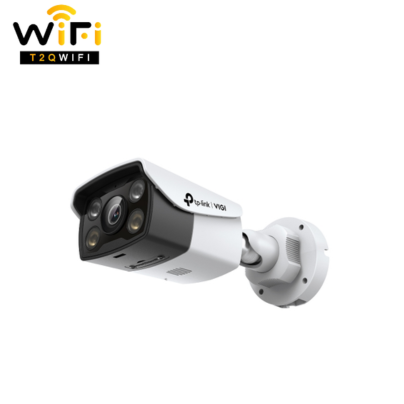

Camera VIGI C340(2.8mm)
CAMERA | |
---|---|
Cảm biến hình ảnh | 1/3” Progressive Scan CMOS |
Tốc độ màn trập | 1/3 to 1/10000 s |
Phơi sáng | Yes |
Nhạy sáng tối thiểu | 0.005 Lux; 0 Lux with IR/white light |
Cơ chế Ngày/Đêm | IR Cut Filter |
Chuyển đổi Ngày/Đêm | Unified/ Scheduled/ Auto |
Ống kính | |
Loại | Fixed Focal Lens |
Độ dài tiêu cự | 2.8 mm/4 mm/6 mm |
Khẩu độ | 2.8 mm: F1.6 4 mm: F1.6 6 mm: F1.6 |
FOV | • 2.8mm: Horizontal FOV: 102.5°, Vertical FOV: 55.2°, Diagonal FOV: 122.1° • 4mm: • 6mm: |
Ngàm ống kính | M12 |
Khoảng cách DORI | • 2.8 mm Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) • 4 mm • 6 mm |
Điều chỉnh góc (Thủ công) | |
Vùng | • Pan: 0° to 360° • Tilt: 0° to 90° • Rotation: 0° to 360° |
Đèn chiếu sáng | |
Đèn hồng ngoại IR | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
Đèn LED trắng | • Quantity: 2 • Range: 30m |
Điều khiển bật/tắt đèn chiếu sáng | Auto/Scheduled/Always on/Always off |
VIDEO | |
Độ phân giải tối đa | 2560 X 1440 |
Luồng chính | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Luồng phụ | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Kiểm soát Bit Rate | CBR, VBR |
Nén video | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
Loại H.264 | High Profile |
H.264+ | Main Stream Supported |
Loại H.265 | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
Hình ảnh | |
Cài đặt hình ảnh | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation(90°/270°) |
Tăng cường hình ảnh | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | DWDR |
SNR | ≥ 52 dB |
Chuyển đổi thông số hình ảnh | Yes |
Vùng riêng tư | Up to 4 Masks |
ROI | 1 Region |
Cài đặt OSD | Yes |
Âm thanh | |
Đàm thoại | Two-Way Audio |
Âm thanh vào | Yes |
Âm thanh ra | Yes |
Nén âm thanh | Yes |
Sampling Rate âm thanh | 8KHz |
Lọc tiếng ồn môi trường | Yes |
Bit Rate âm thanh | 64 Kbps(G.711 alaw) |
MẠNG | |
Giao thức | • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP |
ONVIF | Yes |
API | Open Network Video Interface (Profile S) |
Xem trực tiếp đồng thời | 3 Main Streams & 3 Sub-Streams |
Kết nối và điều khiển | VIGI App, VIGI Security Manager, Web UI |
Trình duyệt Web | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Bảo mật | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
QUẢN LÝ SỰ KIỆN VÀ BÁO ĐỘNG | |
Sự kiện thông minh | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection |
Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
Giao diện kết nối | |
Kết nối mạng | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Báo động | N/A |
Nút Reset | Yes |
Nguồn | DC Power Port |
Lưu trữ trên thiết bị | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
Micro tích hợp | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Loa tích hợp | Yes |
Âm thanh | N/A |
THÔNG TIN CHUNG | |
Nhiệt Độ Hoạt Động | -30–60 °C |
Storage Temperature | -40–60 °C |
Độ Ẩm Hoạt Động | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |

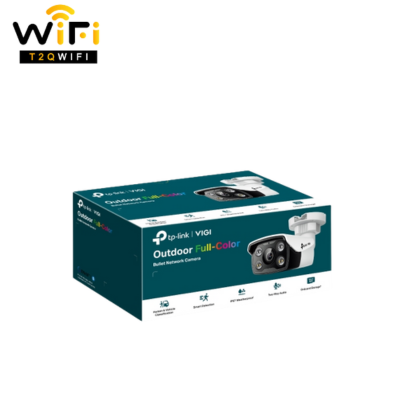

Sản phẩm bao gồm | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
Chất liệu | Plastic |
Khối lượng tịnh | 0.34 Kg |
Trọng lượng | 0.50 Kg |
Power Supply | • 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 8 W |
Protection | IP67 Waterproof |
Product Dimensions (L x W x H) | 78.5× 188.0 × 71.5 mm (3.09× 7.40× 2.81 in) |
Chứng Chỉ | CE, NTRA, VCCI, BSMI, FCC |
