Model |

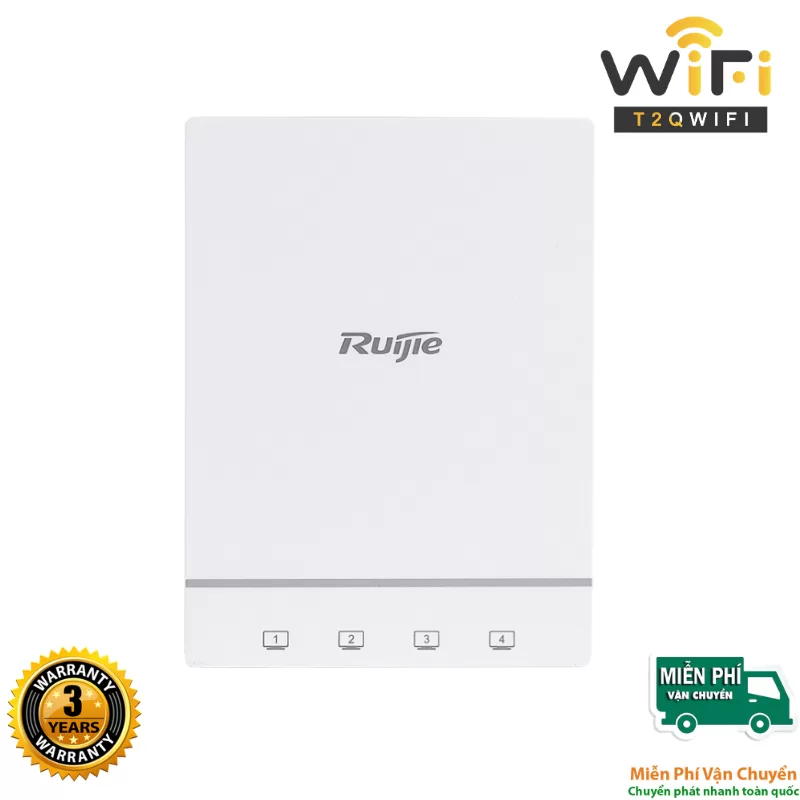

RG-AP180 |
Hardware |
Radio |
Dual-radio dual-band:
Radio 1: 2.4G 11ax: 2×2 MIMO
Radio 2: 5G 11ax: 2x2 MIMO |
Protocol |
Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax |
Operating Bands |
802.11b/g/n/ax: 2.4G ~ 2.483GHz
802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries) |
Spatial Streams |
4 spatial streams, 2x2 MIMO |
Max Throughput |
Maximum throughput of 2.4G: 574Mbps
Maximum throughput of 5G: 1.2Gbps
Maximum throughput per AP: 1.775Gbps |
Transmit Power |
≤100mw (20dBm, radio transmit power only) |
Dimensions |
116mm * 86mm *40mm |
Weight |
0.37kg |
Port |
4 10/100/1000Mbps Ethernet ports
1 10/100/1000Mbps uplink port |
Power Supply |
Support PoE
Support local power supply (DC) |
11ax Feature |
Support 802.11ax
Support MU-MIMO |
Management Port |
1 Micro USB port (hidden) |
Reset |
Support (hidden) |
LED indicator |
Support (hidden)
The indicator can be switched off |
Built-in Antenna |
Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi) |
IoT Protocol |
Support Bluetooth5.0 (BLE), Zigbee |
Power Consumption |
<10W |
IP Rating |
IP41 |
Anti-theft |
Standard: ordinary screws |
Color of AP Enclosure |
White |
Environment |
Operating temperature: 0°C~45°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95% (non-condensing)
Storage humidity: 5%~95% (non-condensing) |
MTBF |
250,000 hours |
Software |
WLAN |
Maximum clients per AP |
1024 |
BSSID capacity |
8(recommended to configure a maximum of 5 BSSIDs per radio in actual application) |
SSID hiding |
Support |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID |
Support |
Remote Intelligent Perception Technology (RIPT) |
Support |
Intelligent load balancing based on the number of users or traffic |
Support |
STA control |
SSID/radio-based |
Bandwidth control |
STA/SSID/AP-based speed control |
Security |
PSK, Web, and 802.1x authentication |
Support |
Data encryption |
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
QR code authentication |
Support (integration with RG-WS series wireless controller) |
SMS authentication |
Support (integration with RG-WS series wireless controller) |
PEAP authentication |
Support (integration with RG-WS series wireless controller) |
Data frame filtering |
Whitelist, static/dynamic blacklist |
User isolation |
Support |
Rogue AP detection and countermeasure |
Support |
Dynamic ACL assignment |
Support |
RADIUS |
Support |
CPU Protection Policy (CPP) |
Support |
Network Foundation Protection Policy (NFPP) |
Support |
Wireless Intrusion Detection System (WIDS) |
Support |
Routing |
IPv4 address |
Static IP address or DHCP |
IPv6 |
Support |
Multicast – IGMP Snooping |
Support |
Management and Maintenance |
Supported wireless LAN controllers |
Ruijie WS Series Wireless Controller |
Ruijie MACC-Base Software Controller |
Ruijie Cloud (Public Cloud) |
Management protocol |
Telnet, SSH, TFTP, Web |
Wireless Intelligent AI Optimization Service (WIS) |
Support |
SNMP |
SNMPV1,V2c,V3 |
Syslog / Debug |
Support |
FAT/FIT/MACC mode switching |
Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
