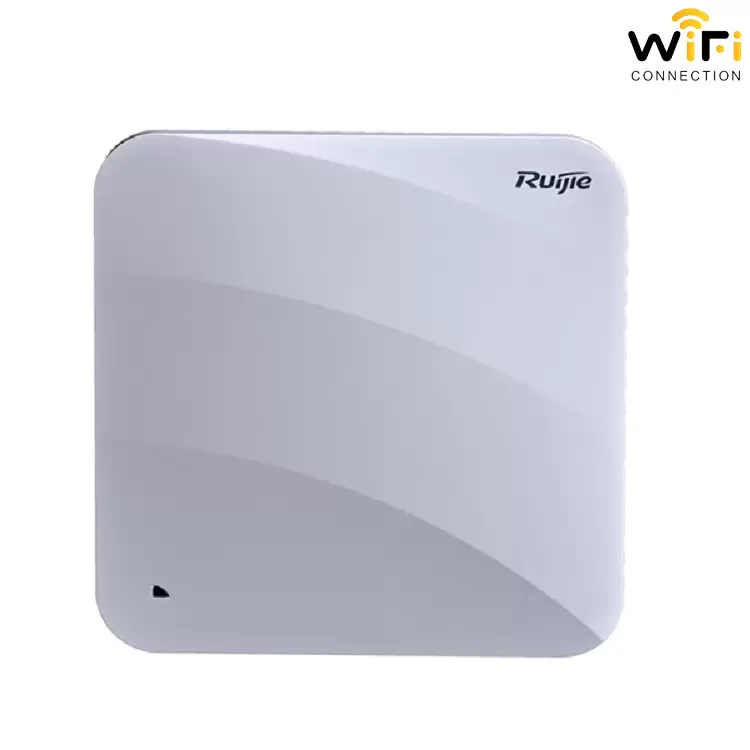

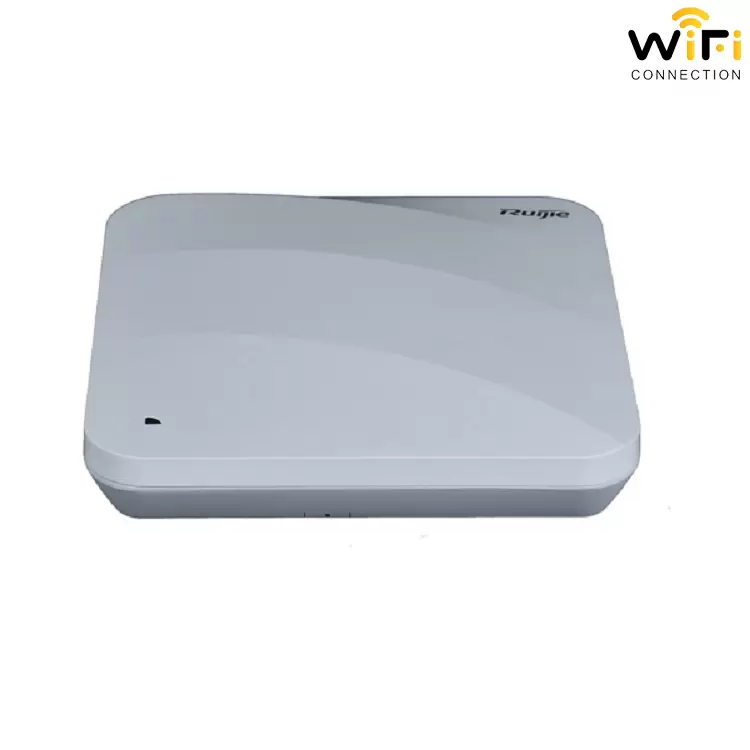

T2QWIFI » WiFi chuyên dụng - Chịu Tải Cao » Ruijie-Reyee » Thiết bị phát sóng WIFI RUIJIE RG-AP740-I
Ngày nay, sự phát triển không ngừng của internet, các doanh nghiệp muốn tăng sức cạnh tranh, phát triển thương hiệu, chăm sóc khách hàng tốt phải có một giải pháp về mạng không dây tuyệt vời.
Trong đó, không thể không nhắc đến thiết bị phát sóng WIFI RUIJIE RG-AP740-I của hãng Ruijie, một trong những bộ phát wifi đang được đánh giá cao với các tính năng ưu việt. Cùng T2QWIFI tìm hiểu chi tiết qua bài viết sau.
Được biết đến là dòng sản phẩm phù hợp với môi trường doanh nghiệp, công ty, nơi có mật độ sử dụng cao, thông số kỹ thuật của bộ phát WIFI RUIJIE RG-AP740-I như sau:
Thông số kỹ thuật thiết bị phát sóng WIFI RUIJIE RG-AP740-I
Là một trong những dòng wifi chuyên dụng trong nhà, WIFI RUIJIE RG-AP740-I chưa từng làm quý khách hàng thất vọng. Không những nó có khả năng chịu tải lớn trên 500 thiết bị truy cập đồng thời mà còn cực kỳ mạnh mẽ với thiết kế powering tri-radio, giúp tăng hiệu suất tốc độ truy cập lên đến 2966 Mbps trên một thiết bị. Ngoài ra, thiết bị phát sóng WIFI RUIJIE RG-AP740-I còn có những tính năng khiến khách hàng “đứng ngồi không yên” như sau:
Một số đặc điểm nổi bật của WIFI RUIJIE RG-AP740-I
Công ty bán RUIJIE RG-AP740-I
Xem thêm: Thiết bị phát sóng WIFI RUIJIE RG-AP630(CD) Chất Lượng Chính Hãng
Qua bài viết trên, hy vọng cung cấp cho bạn thông tin hữu ích về thiết bị phát sóng wifi chịu tải lớn, chuyên dụng cho doanh nghiệp có mật độ người dùng lớn này. Nếu bạn đang có nhu cầu mua bộ phát sóng WIFI RUIJIE RG-AP740-I ở TPHCM, liên hệ ngay với T2QWIFI để nhận trọn bộ ưu đãi lớn và những chính sách bảo hành có một không hai nhé. T2QWFI cam kết đảm bảo tuyệt đối quyền lợi và đồng hành cùng quý khách hàng trong suốt thời gian sử dụng!
THÔNG TIN LIÊN HỆ
CÁC THÔNG SỐ KỸ THUẬT CỦA RG-AP740-L
Model | RG-AP740-I | |
Target Deployments | For campuses, offices, hospitals, and hotspots of service providers | |
Basic Specifications | Radio | Concurrent tri-radio dual-band |
Protocol | 802.11a/b/g/n/ac | |
Wave 2 | ||
Operating Bands | 802.11b/g/n: 2.4GHz to 2.483GHz | |
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) | ||
Antenna | Built-in "X-Sense 4" Smart Antenna | |
4×4 MU-MIMO | ||
Max Throughput | 1733Mbps/800Mbps/433Mbps per radio | |
2966Mbps per AP | ||
Spatial Streams | 4 | |
Modulation | OFDM: BPSK@6/9Mbps | |
QPSK@12/18Mbps | ||
16-QAM@24Mbps | ||
64-QAM@48/54Mbps | ||
DSSS: | ||
DBPSK@1Mbps | ||
DQPSK@2Mbps | ||
CCK@5.5/11Mbps | ||
MIMO-OFDM: | ||
PSK, QPSK, 16QAM, 64QAM and 256QAM | ||
Receiver Sensitivity | 11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps) | |
11a/g:-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps) | ||
11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15 | ||
11ac HT20:-83dBm(MCS0), -57dBm(MCS9) | ||
11ac HT40:-79dBm(MCS0), -57dBm(MCS9) | ||
11ac HT80:-76dBm(MCS0), -51dBm(MCS9) | ||
Maximum Transmit Power | 100mw | |
Adjustable Power | 1dBm | |
IP Rating | IP41 | |
Ports | Service Port | 2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port |
Management Port | 1 console port | |
Power | Power Supply | Local power supply (DC 48V) and PoE+ (802.3af/802.3at) |
Support dual PoE for power backup | ||
(Power adapters sold separately) | ||
Power Consumption | <25.4W | |
WLAN | Maximum clients per AP | Up to 612 |
BSSID capacity | Up to 16 per radio Up to 48 per AP | |
SSID hiding | Support | |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
Remote Intelligent Perception Technology (RIPT) | Support | |
X-speed | Support | |
Intelligent load balancing based on the number of users or traffic | Support | |
STA control | SSID/radio-based | |
Bandwidth control | STA/SSID/AP-based speed control | |
Preference for 5GHz (band select) | Support | |
Wireless position tracking | Support | |
Dynamic Frequency Selection(DFS) | Future Release Support | |
Security | PSK, Web, and 802.1x authentication | Support |
Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | |
SMS authentication | Support | |
PEAP authentication | Support | |
Data frame filtering | Whitelist, static/dynamic blacklist | |
User isolation | Support | |
Rogue AP detection and countermeasure | Support | |
Dynamic ACL assignment | Support | |
RADIUS | Support | |
Wireless Intrusion Detection System(WIDS) | Support | |
Wireless Intrusion Prevention System (WIPS) | Support | |
Bluetooth | iBeacon | Support |
Routing | IPv4 address | Static IP address or DHCP reservation |
IPv6 CAPWAP tunnel | Support | |
ICMPv6 | Support | |
IPv6 address | Manual or automatic configuration | |
Multicast | Multicast to unicast conversion | |
Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, TFTP, Web management |
One-click Optimization | Support | |
(need to integrate with WIS) | ||
Fault detection and alarm | Support | |
Cloud AC management | Support | |
Statistics and logs | Support | |
FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. | |
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | ||
External Characteristics | Lock | Support |
LED Indicators | 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode) | |
Relevant Standard | Wi-Fi Alliance Certification | Support |
Safety Standard | GB4943, EN/IEC 60950-1 | |
EMC Standard | GB9254, EN301 489 | |
Health Standard | EN 62311 | |
Radio Standard | EN300 328, EN301 893 | |
Vibration Standard | IEC60068 2-31, ETSI EN300 019, | |
NEBS GR-63-CORE | ||
Dimensions (W x D x H) (mm) | 230 × 230 × 42 | |
Specifications | (Height of AP only, excluding case and mount kit) | |
Weight | 1.3kg | |
Work Environment | Temperature | Operating Temperature: -10°C to 50°C |
Storage Temperature: -40°C to 70°C | ||
Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
Storage Humidity: 5% to 95% (non-condensing) | ||
Installation Mode | Ceiling/wall-mountable |
