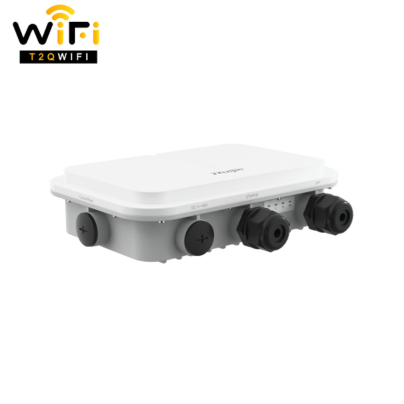

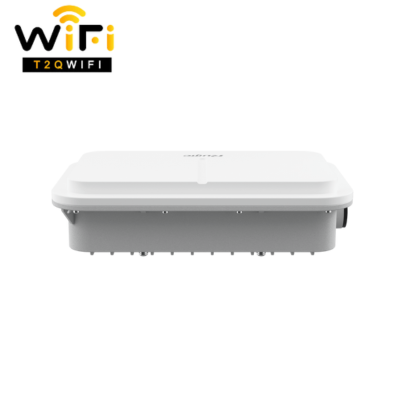

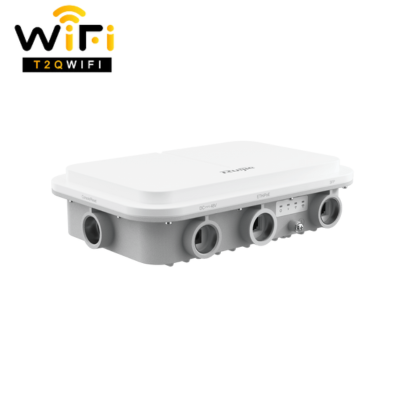

Thiết bị thu phát sóng WiFi 6 ngoài trời Ruijie RG-AP680-CD(V3)

Four spatial streams

● Radio 1 – 2.4 GHz: 2x2 MU-MIMO, two spatial streams

● Radio 2 – 5 GHz: 4x4 MU-MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 0.6 Gbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )

● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

Two spatial streams

● Radio 2 – 5 GHz: 2x2 MU-MIMO, two spatial streams

Channels:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 1.733 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

Four spatial streams

● Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 2.976 Gbps:

● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

Wi-Fi

● 2.4 GHz: two built-in directional antennas, with peak antenna gain of  9 dBi.

● 5 GHz: two built-in directional antennas, with peak antenna gain of 9 dBi.

Bluetooth

● One integrated vertically polarized omnidirectional antenna, t with peak antenna gain of 4.5 dBi.

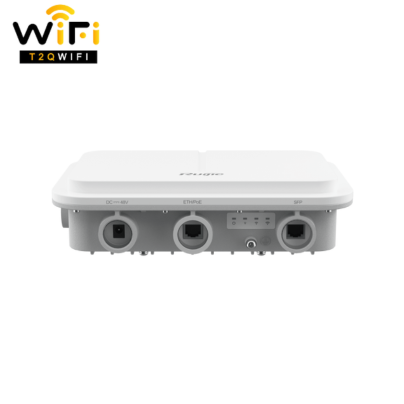

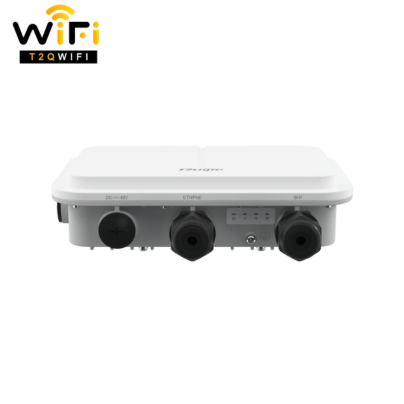

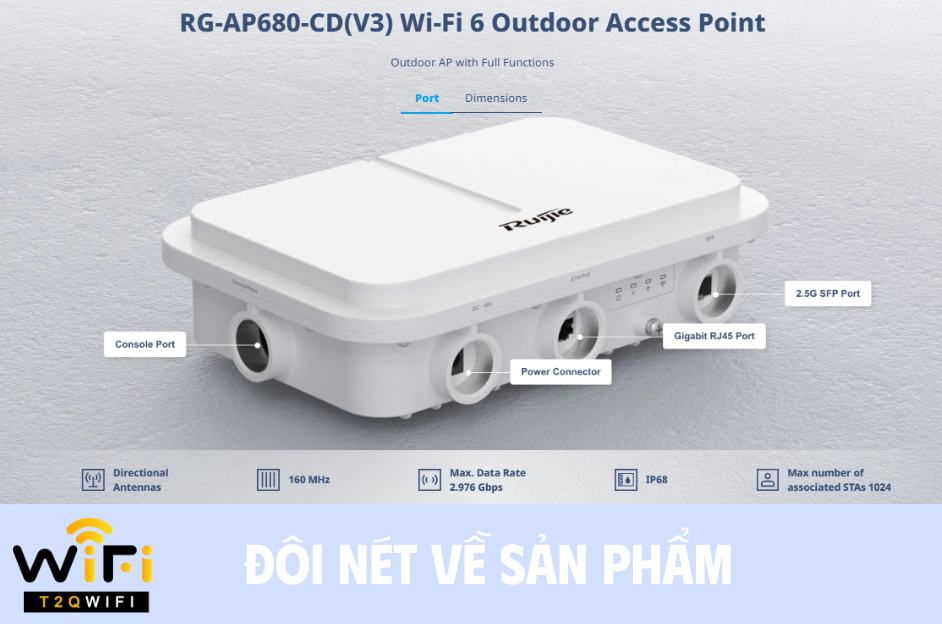

1 x 2.5GE SFP port

1 x 10/100/1000Base-T port

1 x RJ45 console port (serial console port)

1 x Bluetooth 5.0

1 x multi-color system status LED

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● Wireless user online status

● CAPWAP tunnel timeout

● Specific AP locating

Three single-color signal strength LEDs:

● Whether bridging is enabled

● Whether bridging is successful

● Wireless signal strength after successful bridging

1 x Reset button

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.)

Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.79 in.)

Main unit: 1.5 kg (3.31 lbs)

Mounting bracket: 0.2 kg (0.44 lbs)

Shipping: 2.92 kg (6.44 lbs)

Wall/Pole-mounting (a mounting bracket is delivered with the main unit)

The AP supports the following two power supply modes:

● 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power supply needs to be purchased independently.

● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).

Note: If both DC power and PoE are available, DC power is preferred.

Maximum power consumption: 12.95 W

● DC power: 12.95 W

● 802.3at (PoE+): 12.95 W

● 802.3af (PoE): 12.95 W

● Idle mode: 6 W

Storage temperature: –40°C to +85°C (–40°F to +185°F)

Storage humidity: 0% RH to 100% RH (non-condensing)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Operating temperature: –40°C to +65°C (-40°F to +149°F)

Operating humidity: 0% RH to 100% RH (non-condensing)

Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)

Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).

200,000 hours (22 years) at the operating temperature of 25°C (77°F)

512 MB DRAM, 128 MB flash

2.4 GHz

● Maximum transmit power: 28 dBm (631mW)

● Minimum transmit power: 10 dBm (10 mW)

5 GHz

● Maximum transmit power: 28 dBm (631mW)

● Minimum transmit power: 10 dBm (10 mW)

Note:

● Adjusting the transmit power by percentage (recommended) and in 1dBm increments.

● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Software Specifications

Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience

Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters

VIP monitoring and alarm, and custom alarm thresholds

STA global experience map and experience coverage evaluation based on the time range

STA access protocol replay and fine-grained STA fault diagnosis

Note: To support the preceding functions, ensure that the AP works in Fit mode.

Client steering to cope with roaming stickiness, and experience indicator comparison

Client steering to cope with remote association, and experience indicator comparison

One-click diagnosis – analyzing problems and providing suggestions

Time capsule – analyzing the device version and configuration change history

Band steering

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote Intelligent Perception Technology (RIPT)

Intelligent load balancing based on the STA quantity or traffic

Rate set settings

Intelligent STA identification

Radio-based STA limiting

Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates

One-click discovery of the wired and wireless network topology and topology generation

Layer 2 and Layer 3 topology between an AP and an AC

An AP can automatically discover the accessible AC.

An AP can be automatically upgraded through the AC.

An AP can automatically download the configuration file from the AC.

CAPWAP through NAT

Authentication implemented in the cloud, without the need to deploy the local authentication server

Spark-based big data computing capabilities

Data warehouse building based on Hive, and data model conversion, integration, and other functions

EXEC authorization, specifying the source IP address of RADIUS packets, and built-in authentication server

PSK, UPSK and web authentication

QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication

Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3-Enterprise, WPA3-Individual

Granting operation permissions to administrators in different scenarios

Wireless Intrusion Protection System(WIPS)

User isolation

Rogue AP detection and containment

IPv6 ACL

Time range-based ACL

ACL based on a Layer 2 interface

ACL based on a Layer 3 interface

Ingress ACL based on a wireless interface

Dynamic ACL assignment based on 802.1X authentication (used with the AC)

CoA/DM

ACL REMARK

Network Foundation Protection Policy (NFPP)

MAC address table size: 1,024

Maximum number of static MAC addresses: 1,024

Maximum number of filtered MAC addresses: 1,024

Jumbo frame length: 1518

Full-duplex and half-duplex modes of interfaces

IEEE802.1p and IEEE802.1Q

Interface-based VLAN assignment

Maximum number of SVIs: 200

Maximum number of VLANs: 4,094

VLAN ID range: 1–4,094

ARP entry aging, gratuitous ARP learning, and proxy ARP

Maximum number of ARP entries: 1,024

ARP check

Static and DHCP-assigned IPv4 addresses

NAT, FTP ALG and DNS ALG

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping

IPv6 DHCP client

IPv4/IPv6 static route

Maximum number of static IPv4 routes: 1,024

Maximum number of static IPv6 routes: 1,000

Multicast-to-unicast conversion

PPPoE client

IPsec VPN

SNTP client

SNMPv1/v2c/v3

Fault detection and alarm

Information statistics and logging

Web management (Eweb)

Telnet, SSH, FTP client, and FTP management

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.

When the AP works in cloud mode, it can be managed through Ruijie Cloud.

RG-AP680-CD(V3)

EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN 62311, EN IEC 62311, IEC 62368-1, EN 50665, EN 62368-1, and IEC 60950-22
