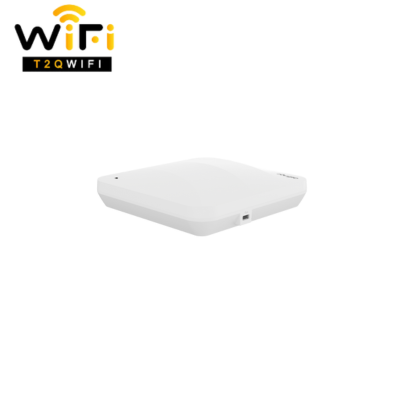

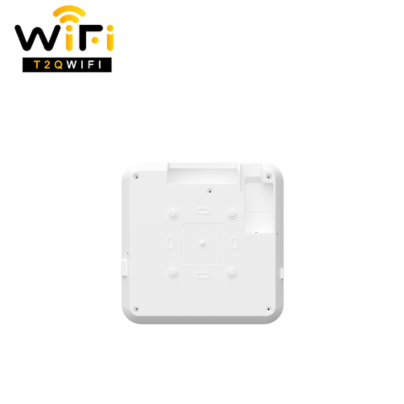

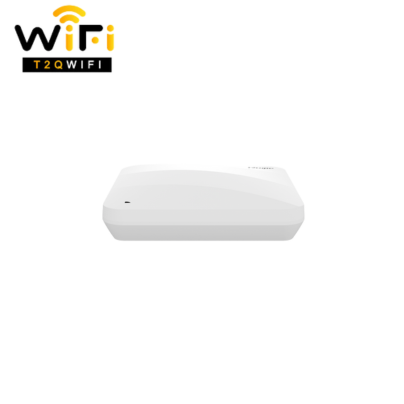

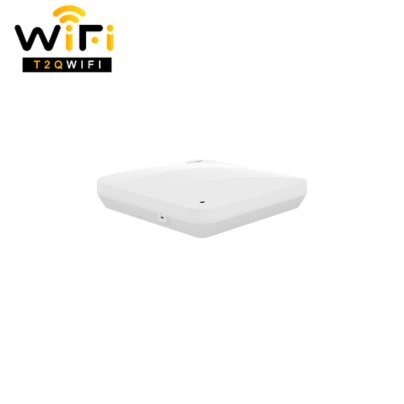

Thiết bị thu phát sóng WiFi 6 Ruijie RG-AP880-E

● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 600 Mbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )

● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channels:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 1.733 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

● Radio 3 – 6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

● Radio 3 – 6 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 7.780 Gbps:

● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)

● Radio 3 – 6 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.

● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi.

● 6 GHz: four built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.

Bluetooth

● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4.6 dBi.

1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules, shared with one 100/1000/2.5G/5GBASE-T port

1 x 10/100/1000Base-T port

1 x RJ45 console port (serial console port)

1 x USB 3.0 (Type-A connector)

1 x Bluetooth 5.1

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● Wireless user online status

● CAPWAP tunnel timeout

● Specific AP locating

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping: 1.25 kg (2.76 lbs)

● 54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.

● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).

Note: If both DC power and PoE are available, DC power is preferred.

● DC power: 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 for PoE supply, and USB port enabled

● 802.3af (PoE): 12.95 W, 2.4 GHz radio 1x1, 5 GHz radio 1x1, 6 GHz radio 1x1, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)

● 802.3at (PoE+): 23 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)

● 802.3bt (PoE++): 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 for PoE supply, and USB port enabled

● Idle mode: 10.3 W

● The USB port can source 1 A/5 W power to an attached device.

● The LAN 2 port can source 48 V/12.95 W power to an IoT unit.

Storage humidity: 5% RH to 95% RH (non-condensing)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Operating temperature: –10°C to +50°C (14°F to 122°F)

Operating humidity: 5% RH to 95% RH (non-condensing)

Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)

Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).

● Maximum transmit power: 27 dBm (500 mW)

● Minimum transmit power: 7 dBm (5.01 mW)

5 GHz

● Maximum transmit power: 30 dBm (1000 mW)

● Minimum transmit power: 6 dBm (3.98 mW)

6 GHz

● Maximum transmit power: 26 dBm (398 mW)

● Minimum transmit power: 9 dBm (7.94 mW)

Note:

● Adjusting the transmit power by percentage (recommended) and in 1dBm increments.

● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Software Specifications

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote Intelligent Perception Technology (RIPT)

Intelligent STA identification technology

Intelligent load balancing based on the STA quantity or traffic

Radio-based STA limiting

Layer 2 and Layer 3 topology between an AP and an AC

An AP can automatically discover the accessible AC.

An AP can be automatically upgraded through the AC.

An AP can automatically download the configuration file from the AC.

CAPWAP through NAT

PSK, UPSK and web authentication

QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication

Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3-Enterprise, WPA3-Individual

Wireless Intrusion Protection System(WIPS)

User isolation

Rogue AP detection and containment

IPv6 ACL

Time range-based ACL

ACL based on a Layer 2 interface

ACL based on a Layer 3 interface

Ingress ACL based on a wireless interface

Dynamic ACL assignment based on 802.1X authentication (used with the AC)

CoA/DM

MAC address table size: 2,048

Maximum number of static MAC addresses: 2,048

Maximum number of filtered MAC addresses: 2,048

Full-duplex and half-duplex modes of interfaces

IEEE802.1p and IEEE802.1Q

Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)

Maximum number of SVIs: 200

Maximum number of VLANs: 4,094

VLAN ID range: 1–4,094

Identification of IP address conflict among downlink users

Maximum number of ARP entries: 2,048

ARP check

NAT, FTP ALG and DNS ALG

IPv6 DHCP client

DNSv6 client

TFTPv6 client

Maximum number of static IPv4 routes: 1,024

Maximum number of static IPv6 routes: 1,000

IPsec VPN

SNTP client

SNMPv1/v2c/v3

Fault detection and alarm

Information statistics and logging

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.

When the AP works in cloud mode, it can be managed through Ruijie Cloud.

Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience

Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters

VIP monitoring and alarm, and custom alarm thresholds

STA global experience map and experience coverage evaluation based on the time range

STA access protocol replay and fine-grained STA fault diagnosis

Note: To support the preceding functions, ensure that the AP works in Fit mode.

Client steering to cope with roaming stickiness, and experience indicator comparison

Client steering to cope with remote association, and experience indicator comparison

One-click diagnosis – analyzing problems and providing suggestions

Time capsule – analyzing the device version and configuration change history

Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates

One-click discovery of the wired and wireless network topology and topology generation

Authentication implemented in the cloud, without the need to deploy the local authentication server

Spark-based big data computing capabilities

Data warehouse building based on Hive, and data model conversion, integration, and other functions

Granting operation permissions to administrators in different scenarios
