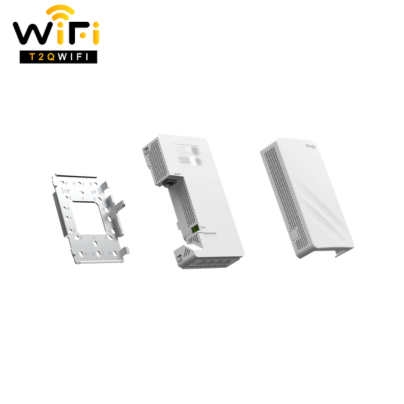

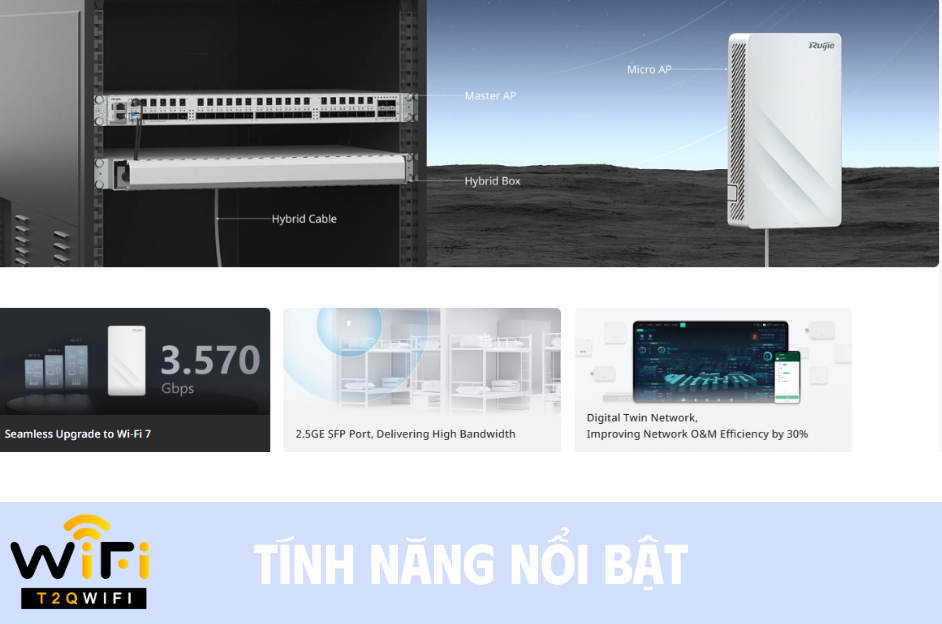

Thiết bị thu phát sóng WiFi 7 Micro AP Ruijie RG-MAP920-SF-M

● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channel:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 600 Mbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM and 64-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channel:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz

Combined peak data rate: 1.733 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channel:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz

Combined peak data rate: 2.976 Gbps

● Radio 1 – 2.4 GHz: 7.3 Mbps to 0.574 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 7.3 Mbps to 2.402 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channel:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz

Combined peak data rate: 3.570 Gbps

● Radio 1 – 2.4 GHz: 7.3 Mbps to 0.688 Gbps (MCS0 to MCS13)

● Radio 2 – 5 GHz: 7.3 Mbps to 2.882 Gbps (MCS0 to MCS13)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM and 4096-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● 2.4 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 2.3 dBi.

● 5 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 3.4 dBi.

Bluetooth

● One built-in omnidirectional antenna, with peak antenna gain of 2.5 dBi.

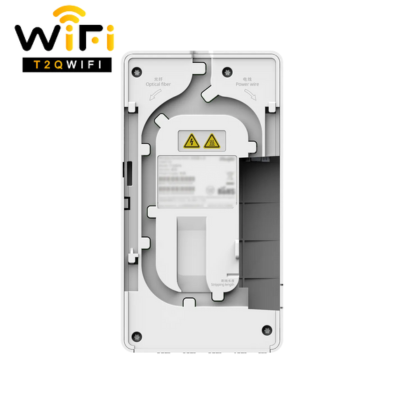

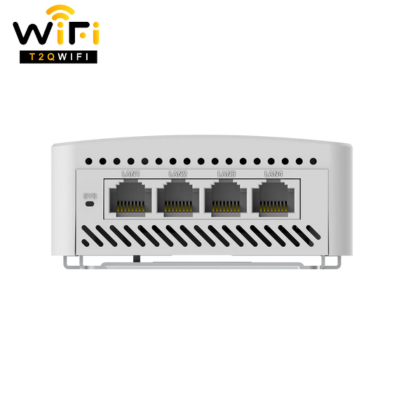

4 x 10/100/1000BASE-T ports

1 x micro USB console port

1 x Bluetooth 5.3

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● Wireless user online status

● CAPWAP tunnel timeout

● Specific AP locating

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

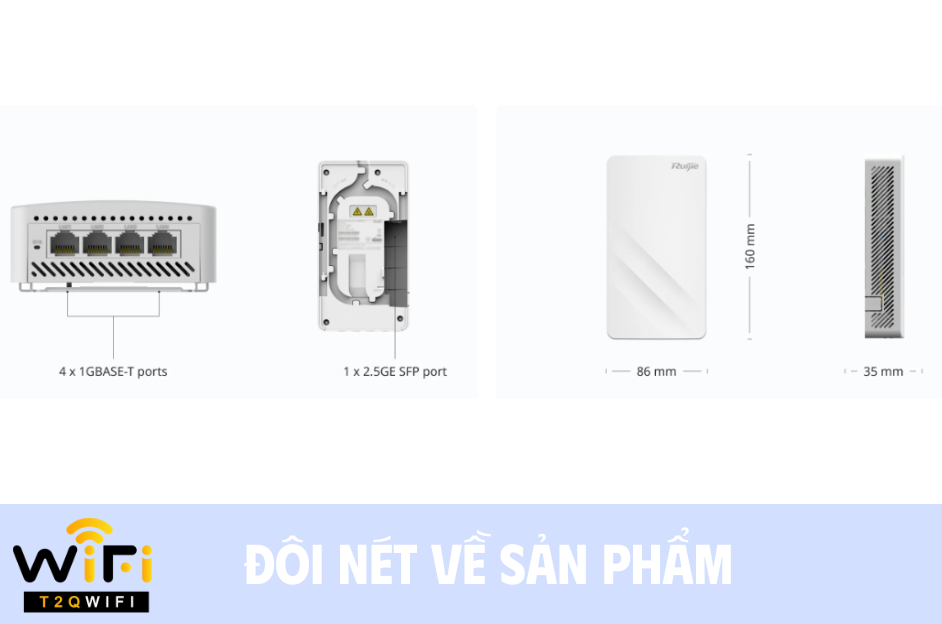

Shipping: 177 mm x 127 mm x 63 mm (6.97 in. x 5.00 in. x 2.48 in.)

Mounting bracket: 0.05 kg (0.11 lbs)

Shipping: 0.45 kg (0.99 lbs)

● 48 V DC/0.35 A power input over DC connector

● PoE/PoE+ input, in compliance with IEEE 802.3af/at standard

Note:

● If DC power is adopted, 802.3af (PoE) is used by default. When the DC output power is 16.8 W or higher, run the following commands to switch to 802.3at (PoE+).

● If the AP adopts DC power, a DC adapter with a power of less than 100 W is required.

● DC power: 16.8 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2

● 802.3at (PoE+): 16.8 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2

● 3af (PoE): 12.68 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2(Note: The maximum channel widths in the 2.4 GHz and 5 GHz frequency bands are reduced to 20 MHz and 40 MHz respectively.)

● Idle mode: 10.6 W

Storage humidity: 5% RH to 95% RH (non-condensing)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Operating temperature: –10°C to +40°C (14°F to 104°F)

Operating humidity: 5% RH to 95% RH (non-condensing)

Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Note: At an altitude in the range of 1,800–5,000 m (5,905.51–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

● Maximum transmit power: 20 dBm (100 mW)

● Minimum transmit power: 12 dBm (15.85 mW)

5 GHz

● Maximum transmit power: 20 dBm (100 mW)

● Minimum transmit power: 10 dBm (10 mW)

Note:

● Adjusting the transmit power by percentage (recommended) and in 1dBm increments.

● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Band steering (preferential access to the 5 GHz radio)

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent load balancing based on the STA quantity or traffic

Radio-based STA limiting

Layer 2 and Layer 3 topology between an AP and an AC

An AP can automatically discover the accessible AC.

An AP can be automatically upgraded through the AC.

An AP can automatically download the configuration file from the AC.

CAPWAP through NAT

MTU setting and fragmentation over CAPWAP tunnels

Encryption over CAPWAP data tunnels

Encryption over CAPWAP control tunnels

EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server

PSK, Web, 802.1X, WPA, WPA2, and WPA3 authentication

QR code-based guest authentication, SMS-based authentication, and MAB authentication

Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), and WPA3

User isolation

Rogue AP detection and containment

Time range-based ACL

ACL based on a Layer 2 interface

ACL based on a Layer 3 interface

Ingress ACL based on a wireless interface

Dynamic ACL assignment based on 802.1X authentication (used with an AC)

ARP attack defense, ICMP attack defense, and DHCP attack defense

MAC address table size: 1,024

Maximum number of static MAC addresses: 1,024

Maximum number of filtered MAC addresses: 1,024

Full-duplex and half-duplex modes of interfaces

Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)

Maximum number of SVIs: 200

Maximum number of VLANs: 4,094

VLAN ID range: 1–4,094

Identification of IP address conflict among downlink users

Maximum number of ARP entries: 1,024

ARP check

Maximum number of IPv4 addresses configured on each Layer 3 interface: 200

NAT, FTP ALG, and DNS ALG

IPv6 DHCP client

Maximum number of IPv6 addresses configured on each Layer 3 interface: 400

Maximum number of static IPv4 routes: 1,024

Maximum number of static IPv6 routes: 1,000

IPsec VPN

SNTP client

SNMP v1/v2c/v3

Fault detection and alarming

Information statistics collection and logging

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through WIS Cloud.
