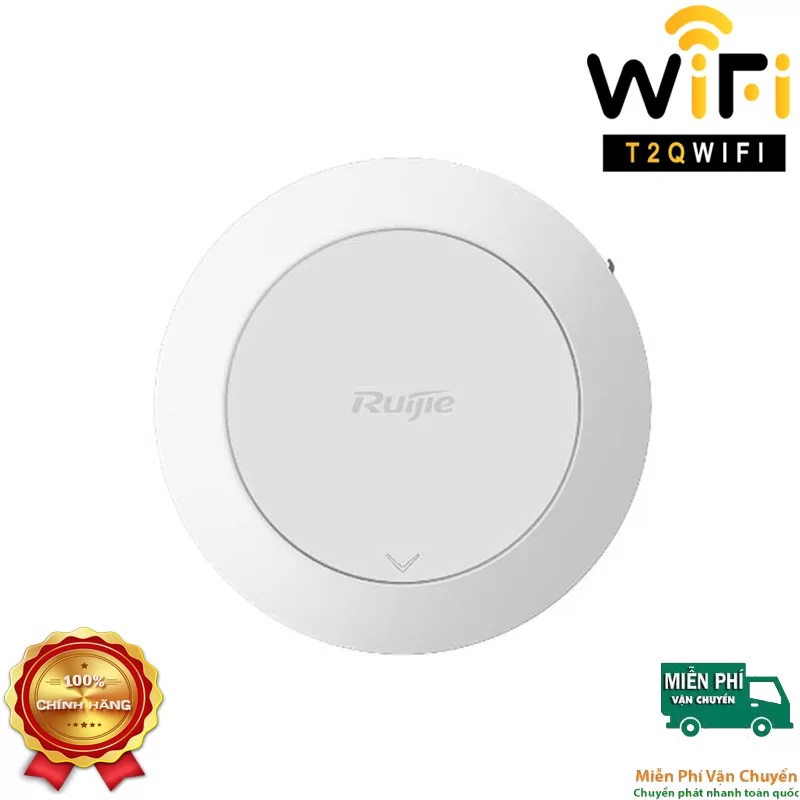

Model
|
RG-AP880-I |
Hardware specifications
|
Radio
|
Dual-radio dual-band(2.4G+5G):2.4G 4×4 MIMO + 5G 8×8 MIMO |
Protocol
|
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac |
Operating Bands
|
802.11b/g/n :2.4G ~ 2.483GHz802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries) |
Spatial Streams
|
Up to 12: 4×4:4 in 2.4GHz , 8×8:8 in 5GHz |
Max Throughput
|
Maximum throughput of 2.4G: 1.15GbpsMaximum throughput of 5G: 4.8Gbps
Maximum throughput per AP: 5.95Gbps |
Modulation
|
OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54MbpsDSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
OFDMA (up to 1024-QAM) |
Receiver Sensitivity
|
11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
11ac HT20:-88dBm(MCS0), -63dBm(MCS9)
11ac HT40:-85dBm(MCS0), -60dBm(MCS9)
11ac HT80:-82dBm(MCS0), -57dBm(MCS9)
11ax HT80:-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11) |

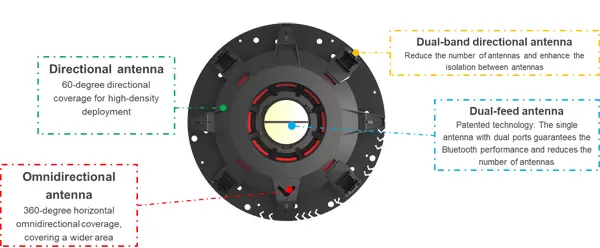

Antenna
|
Integrated antenna design (5th gen X-Sense patent smart antenna) |
Antenna Gain
|
2.4G: 3dBi
5G: 3dBi
|

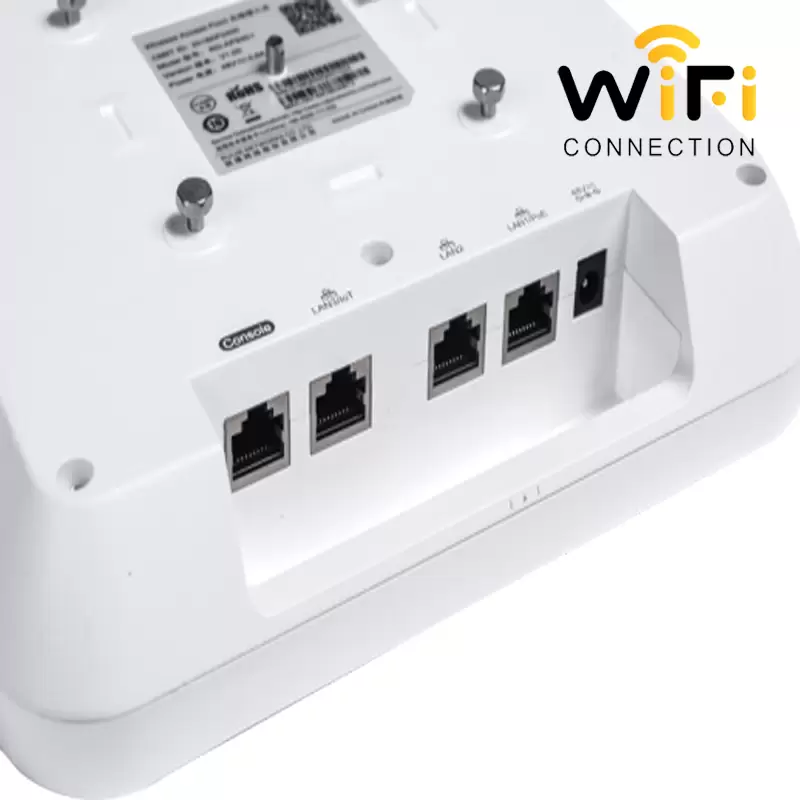

Service Ports
|
1 100M/1000M/2.5G/5G/10G Base-T (PoE In), 1 10G SFP+, 1 10/100/1000M Base-T ports (PoE In), 1 10/100/1000M Base-T ports (LAN/IoT Expansion) |
Management Port
|
1 console port |
USB
|
1 USB 2.0 port |
IoT Capability
|
BLE
|
Reset Button
|
Support |
Anti-theft Lock
|
Support |
LED Indicator
|
1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.) |
Transmit Power
|
≤100mw(20dBm) (vary depending on different countries)
|
Adjustable Power
|
1dBm |
Power Supply
|
Local power supply (DC 48V/1A) (Power adapters are sold separately)
PoE+ (802.3at)
PoE (802.3af) –device cannot power up
|
Power Consumption
|
<40W |
Physical Specifications |
Temperature
|
Operating Temperature: -10°C to 45°C |
Storage Temperature: -40°C to 70°C |
Humidity
|
Operating Humidity: 5% to 95% (non-condensing) |
Storage Humidity: 5% to 95% (non-condensing) |
Installation Mode
|
Ceiling/wall-mountable |
Dimensions (W x D x H)
|
220mm ×220mm x48.85mm(Height of the AP only, excluding the mount kit) |
Weight
|
AP 3.05Kg, Mount Kit 0.2Kg |

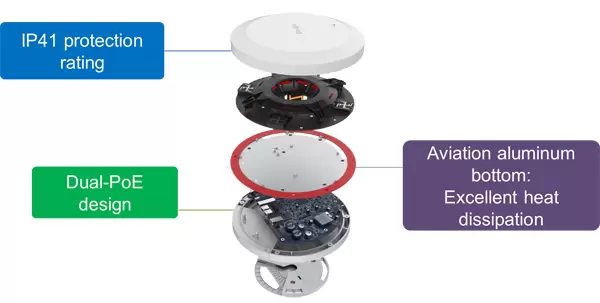

IP Rating
|
IP41 |
Certifications and Compliance
|
Safety Standard
|
GB4943, EN/IEC 60950-1 |
EMC Standard
|
GB9254, EN301 489 |
Health Standard
|
EN 62311 |
Radio Standard
|
SRRC, EN300 328, EN301 893
|
Software Specifications
|
WLAN |
Maximum clients per AP |
1024 |
Recommended clients per AP |
64 |
BSSID capacity |
Up to 32 |
SSID hiding |
Support |
5G Priority (Band Steering) |
Support |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID |
Support |
Remote Intelligent Perception Technology (RIPT) |
Support |
Intelligent device recognition technology |
Support |
Intelligent load balancing based on the number of users or traffic |
Support |
STA control |
SSID/radio-based |
Bandwidth control |
STA/SSID/AP-based bandwidth control |
Data encryption |
WPA(TKIP), WPA-PSK, WPA2(AES), WEP(64/128 bits) |
PSK and web authentication |
Support |
PPSK authentication (For Employee) |
Support (require wireless controller) |
802.1x authentication |
Support |
PEAP authentication |
Support |
Data frame filtering |
Whitelist, static/dynamic blacklist |
User isolation |
Support |
Rogue AP detection and countermeasure |
Support |
Dynamic ACL assignment |
Support |
RADIUS |
Support |
CPU Protection Policy (CPP) |
Support |
Network Foundation Protection Policy (NFPP) |
Support |
IP |
IPv4 and IPv6 address
|
Support
|
Multicast routing
|
Multicast to unicast conversion
|
DHCP service
|
DHCP Snooping, Option 82, Server, Client
|
Management and Maintenance
|
Supported wireless LAN controllers
|
Ruijie WS Series Wireless ControllerRuijie MACC-Base Software Controller
Ruijie Cloud (Public Cloud) |
Management protocol |
Telnet, SSH, TFTP, Web |
Wireless Intelligent AI Optimization Service (WIS) |
Support |
SNMP |
SNMPV1,V2c,V3 |
Syslog / Debug |
Support |
FAT/FIT/MACC mode switching |
Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
